Core positioning and parameter overview:
| Characteristic | ATV320 (Yuzhuo Series) | ATV600 (Royal Journey Series) | ATV900 (Royal Journey Series) |
| Product Positioning | Specialized machines: OEM applications in general machinery, material handling, packaging, textiles, etc. | Process and Energy: Fans, pumps, fluid management, with a focus on energy conservation and OPEX reduction. | High-performance heavy-duty applications: lifting, tension control, high torque applications, and process control capabilities. |
| Power range | 0.18 - 15kW (Book/Compact) | 0.75 - 800kW (General Purpose) Expanded to 315kW (Feng Shui Power Dedicated) |
0.75 - 2600kW (including wall-mounted and cabinet types) |
| 0.18 - 222kW (IP20 Universal) | |||
| 0.18 - 7.5kW (IP66 High Protection) | |||
| Voltage level | Single-phase 200-240V / Three-phase 200-240V / Three-phase 380-500V / 525-600V | Three-phase 220-240V / 380-480V 500-690V |
Three-phase 200-240V / 380-480V 500-690V |
| Overload capacity | Heavy load: 150% (60s) | Light load: 120% (60s) Heavy load: 150% (60s) |
Light load: 120% (60s) Heavy load: 150% (60s) |
| Environmental tolerance | No capacity degradation at 50°C,coating conforms to 3C3 and 3S2 standards for operation up to 60°C. |
-15°C to 50°C without derating; standard configuration: 3C3, 3S3 |
-15°C to 50°C without derating; maximum 60°C (derating); standard configuration: 3C3, 3S3 |

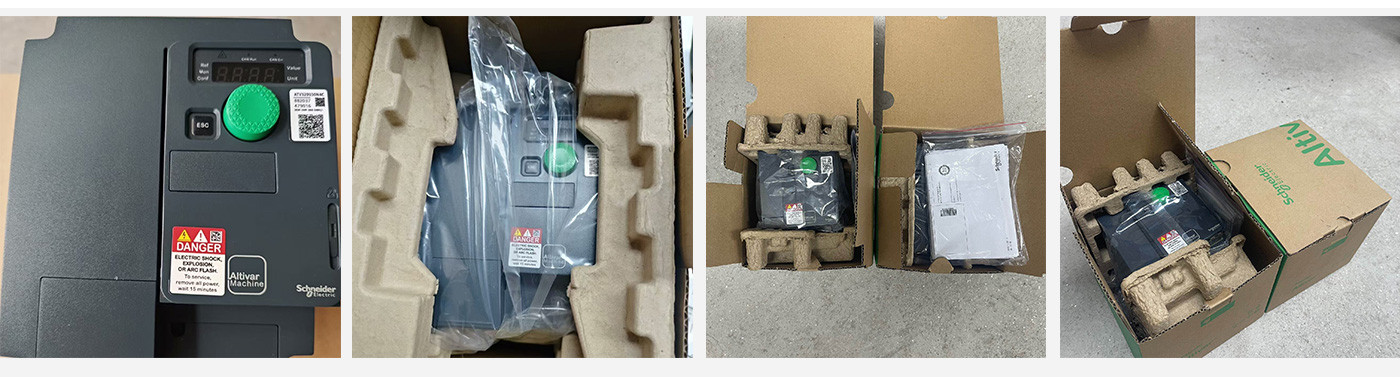

| ATV320 Main Model Quick Reference Table | ||||
| Power (kW) | Single-phase 200-240V (M2) | Three-phase 200-240V (M3) | Three-phase 380-500V (N4) | Three-phase 525-600V (S6) |
| 0.18 | ATV320U02M2C | ATV320U02M3C | —— | —— |
| 0.37 | ATV320U04M2C | ATV320U04M3C | —— | —— |
| 0.55 | ATV320U06M2C | ATV320U06M3C | —— | —— |
| 0.75 | ATV320U07M2C | ATV320U07M3C | ATV320U07N4B/C | ATV320U07S6C |
| 1.1 | ATV320U11M2C | ATV320U11M3C | ATV320U11N4C | —— |
| 1.5 | ATV320U15M2C | ATV320U15M3C | ATV320U15N4C | —— |
| 2.2 | ATV320U22M2C | ATV320U22M3C | ATV320U22N4C | —— |
| 3 | —— | ATV320U30M3C | —— | —— |
| 4 | —— | ATV320U40M3C | ATV320U40N4B/C | —— |
| 5.5 | —— | ATV320U55M3C | ATV320U55N4B/C | —— |
| 7.5 | —— | ATV320U75M3C | ATV320U75N4B/C | —— |
| 11 | —— | ATV320D11M3C | ATV320D11N4B | ATV320D11S6C |
| 15 | —— | ATV320D15M3C | ATV320D15N4B | —— |
| Size | Yuzhuo Family ATV320 inverter Compact Inverter |
Size | Yuzhuo Family ATV320 Inverter Compact Inverter |
|
|
|
||
| Size (Continued) | Yuzhuo Family ATV320 Inverter Book-type Inverter |
Size (Continued) | Yuzhuo Family ATV320 Inverter Driver with compact control block |
|
|
|
||

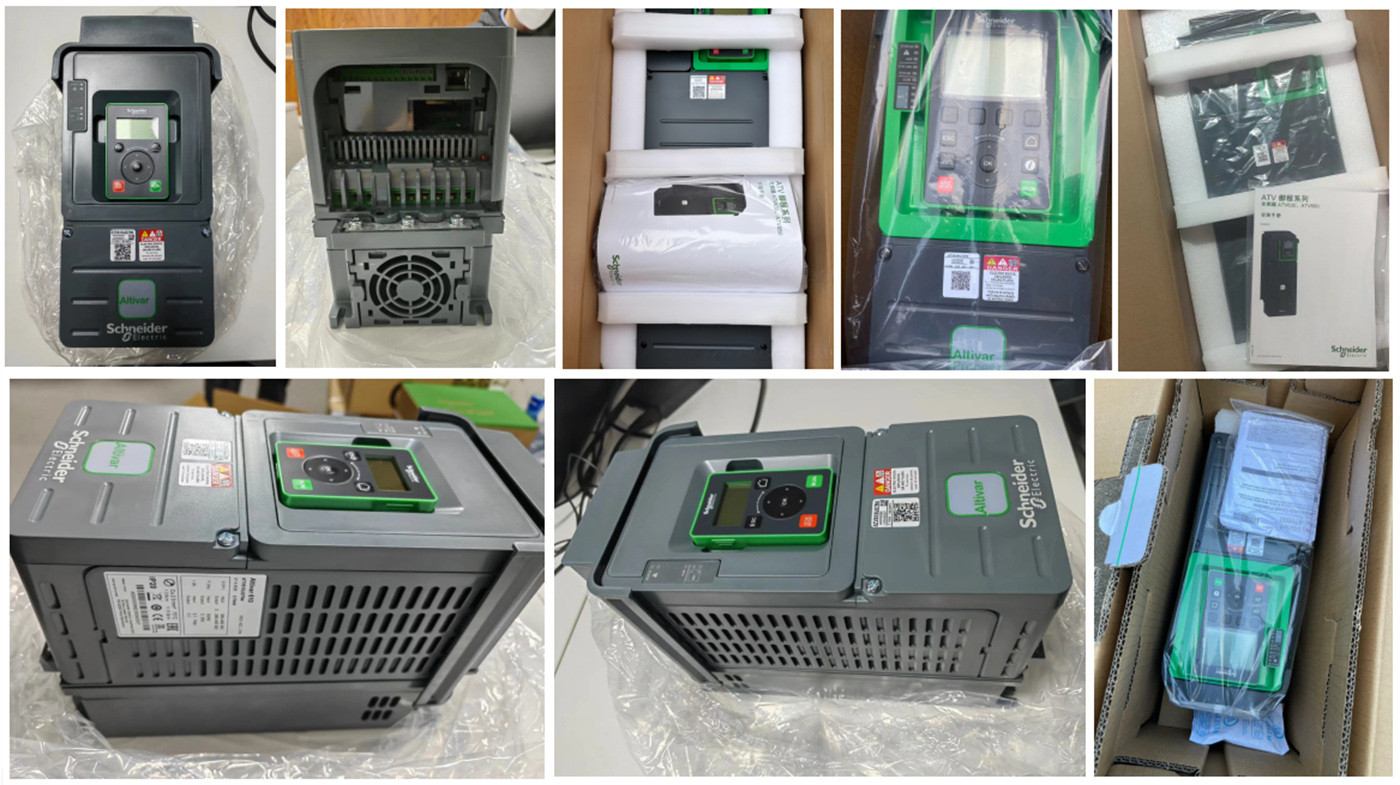

| ATV610 Main Models Quick Reference | ATV630 Main Models Quick Reference | ||
| Power (kW) | Model (380-460 V, Three-phase) | Power (kW) | Model (380-460 V, Three-phase) |
| 0.75 | ATV610U07N4 | 0.75 | ATV630U07N4 |
| 1.5 | ATV610U15N4 | 1.5 | ATV630U15N4 |
| 2.2 | ATV610U22N4 | 2.2 | ATV630U22N4 |
| 3 | ATV610U30N4 | 3 | ATV630U30N4 |
| 4 | ATV610U40N4 | 4 | ATV630U40N4 |
| 5.5 | ATV610U55N4 | 5.5 | ATV630U55N4 |
| 7.5 | ATV610U75N4 | 7.5 | ATV630U75N4 |
| 11 | ATV610D11N4 | 11 | ATV630D11N4 |
| 15 | ATV610D15N4 | 15 | ATV630D15N4 |
| 18.5 | ATV610D18N4 | 18.5 | ATV630D18N4 |
| 22 | ATV610D22N4 | 22 | ATV630D22N4 |
| 30 | ATV610D30N4 | 30 | ATV630D30N4 |
| 37 | ATV610D37N4 | 37 | ATV630D37N4 |
| 45 | ATV610D45N4 | 45 | ATV630D45N4 |
| 55 | ATV610D55N4 | 55 | ATV630D55N4 |
| 75 | ATV610D75N4 | 75 | ATV630D75N4 |
| 90 | ATV610D90N4 | 90 | ATV630D90N4 |
| 110 | ATV610C11N4 | 110 | ATV630C11N4 |
| 132 | ATV610C13N4 | 132 | ATV630C13N4 |
| 160 | ATV610C16N4 | 160 | ATV630C16N4 |
| 220 | ATV630C22N4 | ||
| 250 | ATV630C25N4 | ||
| 315 | ATV630C31N4 | ||
| Size | Inverter Yucheng ATV600 Series Inverter 200...240V, 380...480V IP21 |
Size (Continued) | Inverter Yucheng ATV600 Series IP21 Inverter: 380...480V IP00 Converter: 500... 690 V |
|
|
|
||
| Size (Continued) | Inverter Yucheng ATV600 Series IP55 Inverter: 380...480V |
Size (Continued) | Inverter Yucheng ATV600 SeriesIP21 and IP54 Inverters: 380...440V |
|
|
|
||

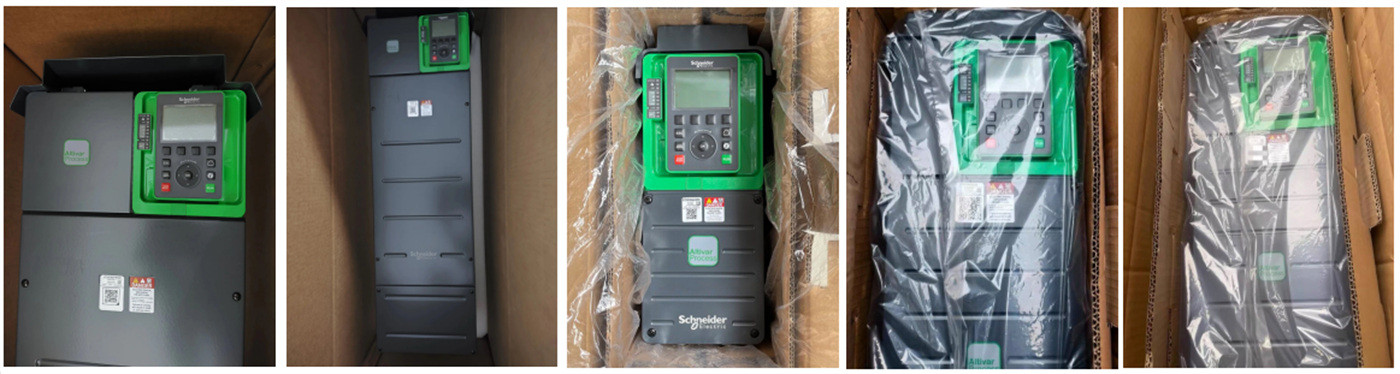

| ATV930 Main Models Quick Reference | ||||||||||||||
| Power (kW) | Standard Load Models (Brake Unit Included as Standard) | Models Without Brake Unit (Suffix: C) | Cabinet-mounted Models (Suffix: F) | |||||||||||
| 0.75 | ATV930U07N4 | - | - | |||||||||||
| 1.5 | ATV930U15N4 | - | - | |||||||||||
| 2.2 | ATV930U22N4 | - | - | |||||||||||
| 3 | ATV930U30N4 | - | - | |||||||||||
| 4 | ATV930U40N4 | - | - | |||||||||||
| 5.5 | ATV930U55N4 | - | - | |||||||||||
| 7.5 | ATV930U75N4 | - | - | |||||||||||
| 11 | ATV930D11N4 | ATV930C11N4C | ATV930C11N4F | |||||||||||
| 15 | ATV930D15N4 | - | - | |||||||||||
| 18.5 | ATV930D18N4 | - | - | |||||||||||
| 22 | ATV930D22N4 | - | - | |||||||||||
| 30 | ATV930D30N4 | - | - | |||||||||||
| 37 | ATV930D37N4 | - | - | |||||||||||
| 45 | ATV930D45N4 | - | - | |||||||||||
| 55 | ATV930D55N4 | ATV930D55N4C | - | |||||||||||
| 75 | ATV930D75N4 | ATV930D75N4C | - | |||||||||||
| 90 | ATV930D90N4 | ATV930D90N4C | - | |||||||||||
| 110 | - | ATV930C11N4C | ATV930C11N4F | |||||||||||
| 132 | - | ATV930C13N4C | ATV930C13N4F | |||||||||||
| 160 | - | ATV930C16N4C | ATV930C16N4F | |||||||||||
| 200 | - | ATV930C20N4F | - | |||||||||||
| 220 | - | ATV930C22N4F | - | |||||||||||
| 250 | - | ATV930C25N4F | - | |||||||||||
| 315 | - | ATV930C31N4F | - | |||||||||||
| Size | Inverter Yucheng ATV900 Series IP21 Inverter: 200...240V |
Size (Continued) | Inverter Yucheng ATV900 Series IP21 Inverter: 380...480V |
|
|
|
||
| Size (Continued) | Inverter Yucheng ATV900 Series IP21 Inverter: 380...480V |
Size (Continued) | Inverter Yucheng ATV900 Series IP00 Converter: 500... 690 V IP21 Inverter: 380...440V |
|
|
|
||
| Size (Continued) | Inverter Yucheng ATV900 Series IP55 Inverter: 380...480V IP54 Inverter: 380...440V |
|
|
|
Application Scenarios：
| ATV320 (Yuzhuo Series): Overseas Focus on "Solar Energy and Remote Areas" | ATV600 (Royal Journey Series): Focusing on "Energy Saving and Predictive Maintenance" | ATV900 (Yucheng Series): Overseas Focus on "Heavy Load and Harsh Environments" |
 |
 |
 |
|

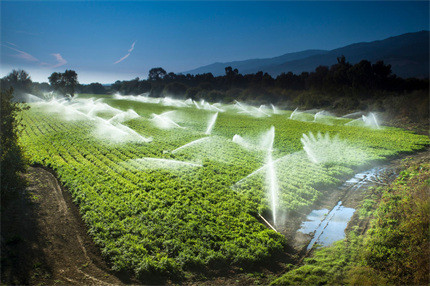

● Solar Irrigation: Drip and sprinkler irrigation systems for farms ● Water Supply in Remote Areas: Water storage and treatment systems for off-grid villages ● Livestock Drinking Water: Automated water supply systems for ranches ● Sprinkler System: Large-scale sprinkler systems |

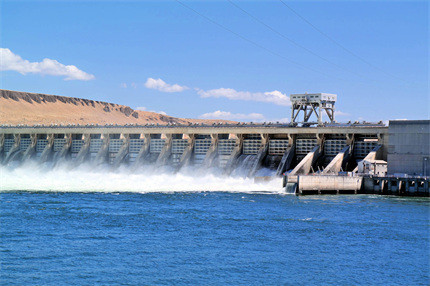

● Water/Wastewater Industry: Seawater desalination, pumping stations, wastewater treatment plants ● Oil and Gas: Upstream extraction (e.g., Permian Basin projects), pipeline transportation ● HVAC: Cooling systems for large commercial buildings and data centers ● General Industrial Applications: Fans, pumps, compressors |

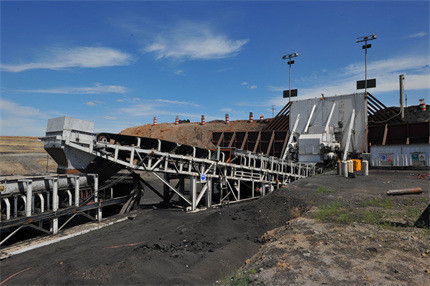

● Mining: Underground ventilation systems, hoists, conveyor belts (e.g., applications at depths of 1400 meters in Finnish mines) ● Lifting: Port and dock cranes, bridge cranes, tower cranes ● Metallurgy: Rolling mills, converter tilting systems, extrusion presses ● Downstream and midstream oil and gas: Refinery compressors, manual lifting equipment ● Food and beverage: High-hygiene/frequent cleaning environments |
