ABB AX series AC contactors—designed for high-efficiency motor control and power management.

The ABB AX series represents a new generation of 3-pole AC contactors launched by ABB for the global market, specifically designed to control three-phase motors and power circuits with rated operating voltages up to 690V/1000V AC. Characterized by a compact design, exceptional electrical endurance, and stable, reliable performance, this series has become an ideal choice for motor control and power distribution management across the building, industrial, and infrastructure sectors.

AX Series Contactors (AX09–AX370) Key Specifications Table
Model	AC-3 rated operating current(380/400V)	AC-3 rated power (380/400V)	Conventional free-air thermal current Ith (40°C)	Built-in auxiliary contact	Coil pull-in power (50Hz)	Coil holding power (50Hz)
AX09	9 A	4 kW	24 A	1 NO	70 VA	7 VA
AX12	12 A	5.5 kW	26 A	1 NO	70 VA	7 VA
AX18	18 A	7.5 kW	28 A	1 NO	70 VA	7 VA
AX25	25 A	11 kW	32 A	1 NC+1 NO	70 VA	7 VA
AX32	32 A	15 kW	65 A	1 NC+1 NO	140 VA	8 VA
AX40	40 A	18.5 kW	65 A	1 NC+1 NO	140 VA	8 VA
AX50	50 A	22 kW	——	1 NC+1 NO	190 VA	9 VA
AX65	65 A	30 kW	——	1 NC+1 NO	——	——
AX80	80 A	37 kW	——	1 NC+1 NO	——	——
AX95	95 A	45 kW	——	1 NC+1 NO	350 VA	22 VA
AX115	115 A	55 kW	——	1 NO+1 NC	350 VA	22 VA
AX150	150 A	75 kW	——	1 NO+1 NC	350 VA	22 VA
AX185	185 A	90 kW	250 A	1 NO+1 NC	570 VA	22 VA
AX205	205 A	110 kW	——	1 NO+1 NC	570 VA	22 VA
AX260	260 A	132 kW	250 A	1 NO+1 NC	570 VA	22 VA
AX300	300 A	160 kW	——	1 NO+1 NC	1080 VA	28 VA
AX370	370 A	200 kW	——	1 NO+1 NC	1080 VA	28 VA

Additional Technical Features
● Product Characteristics: The entire AX series complies with standards such as IEC 60947-4-1, featuring a rated insulation voltage (Ui) of up to 1000V and a rated impulse withstand voltage (Uimp) of 8kV. Without a thermal overload relay installed, the operating ambient temperature range is -40°C to +70°C, and the devices can operate at altitudes up to 3000 meters without derating.
● Accessories and Installation: The series supports a wide range of accessories, such as auxiliary contacts, mechanical interlock units, and timers. High-current contactors (AX185–AX370) feature zero arcing distance, allowing for installation directly against the cabinet door to save space.

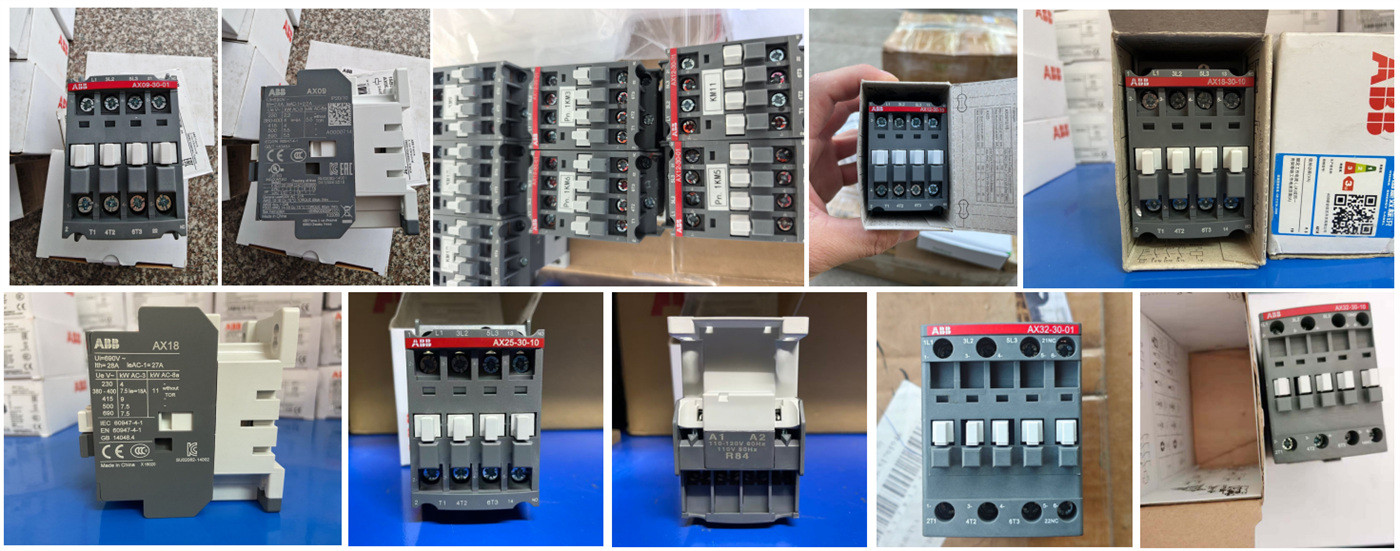

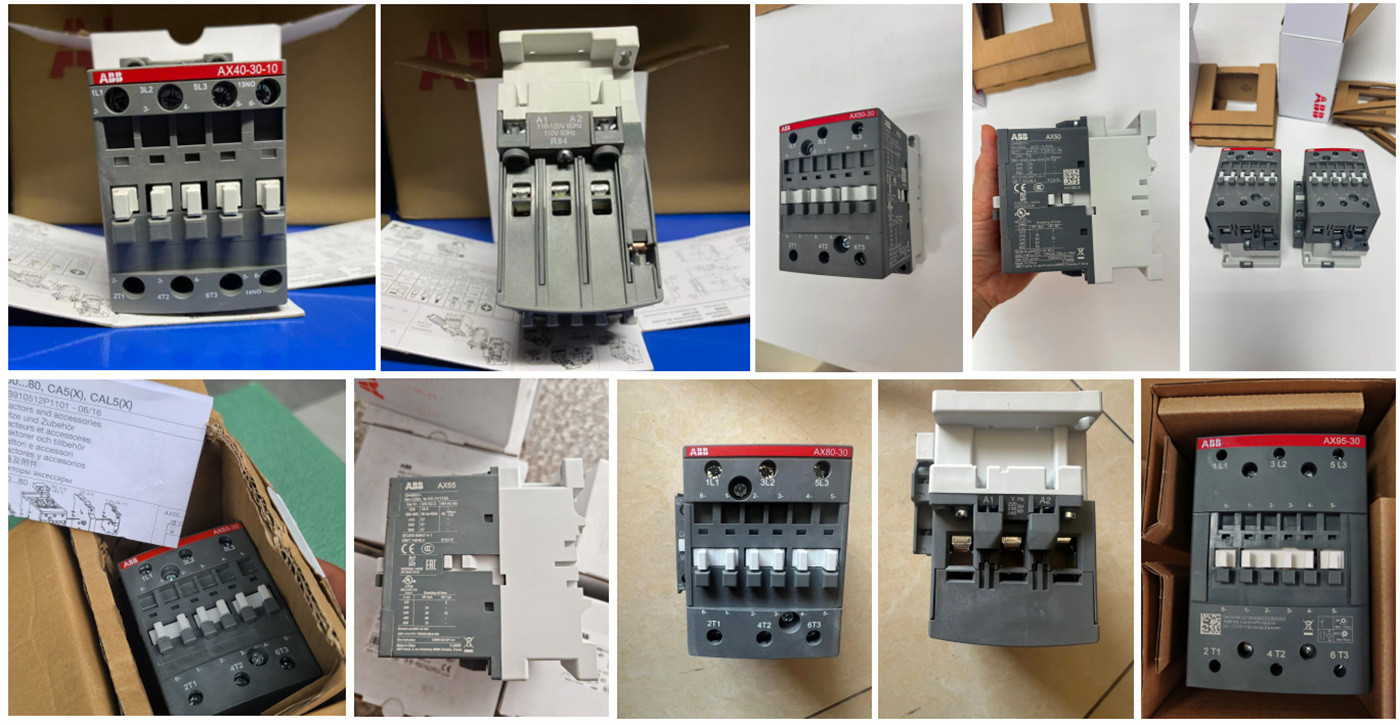

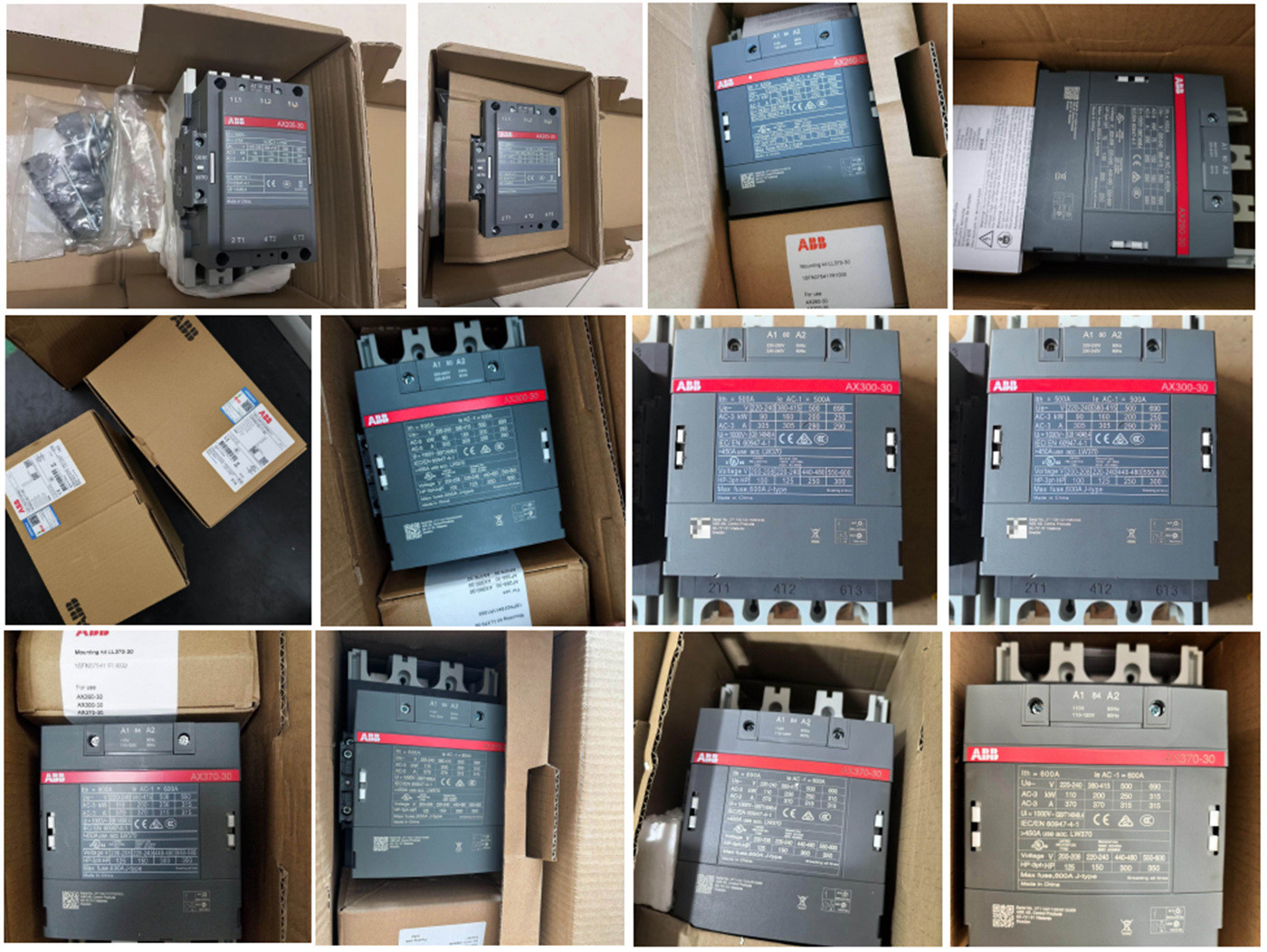

ABB AX series AC contactors
